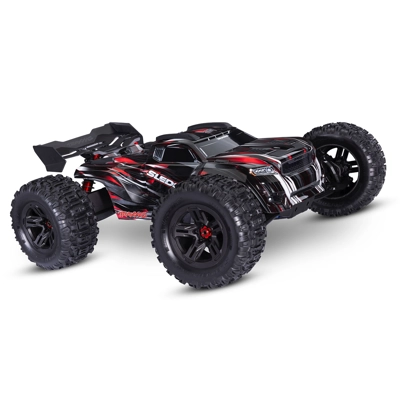

Traxxas Sledge 6S Belted

Traxxas Sledge 6S Belted
Brand: Traxxas
Part No: TRX95096-4

Size: 1/8
Speed: 70+ mph
Power: VXL-6s
Battery & Charger: Sold Separately


Key Features
Extreme Velineon® VXL-6s ESC with 2000 Kv Brushless Motor
TQi™ 2.4 GHz High-Output Radio System with Traxxas Stability Management® (TSM)
Ultra-Rigid Aluminum Chassis with Aluminum T-Bar
Oversize Steel Driveline for Unmatched Strength and Durability
Huge 6.7″ Belted Sledgehammer® Tires with Foam Inserts

Redefining 1/8 Scale Off-Road
Engineered. Tested. Built to a higher standard. Sledge® is made to exceed your expectations for quality, toughness, and fun. The rock-solid chassis, massive steel drivetrain, ferocious 6s power, and race-inspired handling leave everything else in the dust. New belted Sledgehammer® tires limit high-speed tire expansion for a larger, flatter contact patch and game-changing high-speed precision and control.

ENGINEERED FOR 6s POWER
Sledge is the only truck in this class with a properly sized, 6s-capable driveline. Bigger gears. More steel. Basically bombproof. Sledge smashes the status quo to be the new standard for extreme 6s durability.

SUPERIOR CHASSIS STRENGTH
Sledge is engineered to have the strongest chassis in the class. The triangulated chassis structure integrates a deep-formed aluminum plate with a multi-point composite truss system and the patent-pending full-length T-Bar™. Built on a solid foundation, Sledge is strongest where it matters most.

NEW CLIPLESS BODY
Remove and replace the body in just seconds with exclusive patent-pending clipless body solutions engineered by Traxxas. Sledge’s clipless body goes on smoothly with a satisfying snap. The body is designed to come off when YOU release it.

Traxxas Sledge 6S Belted Specs:

Length (including wing): 23.78 inches (604mm)
Front Track: 18.10 inches (459mm)
Rear Track: 18.10 inches (459mm)
Ground Clearance: 1.95 inches (50mm)
Weight (no battery): 12.74 pounds (5.77kgs)
Height (overall): 8.43 inches (214mm)
Wheelbase: 15.10 inches (384mm)
Shock Length (front): 5.12 inches (128mm)
Shock Length (rear): 5.67 inches (144mm)
Tire Diameter: 6.7 x 3.3 inches (170mm x 84mm)
Wheel Diameter: 3.8 inches (97mm)
Speed Control: Velineon® VXL-6s (#3485)
Motor (electric): Velineon® 2000kV Brushless
Overall Drive Ratio: 17.2 (13/52 motor pinion and spur gear)
Differential Type: Sealed, hardened steel bevel, limited slip
Gear Pitch: Module 1.0
Chassis Structure/Material: 3.2mm aluminum plate
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Double-shear bellcrank w/metal servo arm
Wheels & Tires: 3.8” wheels, pre-glued Belted Sledgehammer® Tires & foam inserts; 6.7x3.8
Radio System: 2-Channel, TQi™ 2.4GHz Transmitter with TSM® receiver
Servo: 2275 Waterproof, metal-gear (347oz-in torque)
Top Speed: 70+ MPH with two 3S LiPo batteries and optional gearing (sold separately)
Skill Level: 4
Battery Tray: Narrow configuration (L/W/H): 181mm x 50mm x 29/37/45mm*
Wide configuration (L/W/H): 160mm x 57mm x 29/37/45mm*
Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)
What’s In The Box:

Sledge, Ready-To-Race® monster truck with Traxxas 2000kV brushless motor
VXL-6s waterproof electronic speed control with integrated telemetry
Quick Start Guide
TQi™ 2.4GHz radio system
High quality maintenance tools
Jumper plug (for 4s battery use)
What You’ll Need:

LiPo Batteries - 2 x 3S TRX LiPos are Recommended
Suitable LiPo Charger
AA Alkaline Batteries - Four AA alkaline batteries for the transmitter.

• Truck Specs



• Motor Specs



• ESC Specs



• Servo Specs



• Features List



• What’s Included

Length (including wing):	23.78 inches (604 mm)
Front Track:	18.10 inches (459 mm)
Rear Track:	18.10 inches (459 mm)
Ground Clearance:	1.95 inches (50 mm)
Weight (no battery):	12.74 pounds (5.77kgs)
Height (overall):	8.43 inches (214 mm)
Wheelbase:	15.10 inches (384 mm)
Shock Length (front):	5.12 inches (128 mm)
Shock Length (rear):	5.67 inches (144 mm)
Tire Diameter:	6.7 x 3.3 inches (170 mm x 84 mm)
Wheel Diameter:	3.8 inches (97 mm)
Speed Control:	Velineon® VXL-6s (3485)
Motor (electric):	Velineon® 2000 Kv Brushless
Overall Drive Ratio:	17.2 (13/52 motor pinion and spur gear)
Differential Type:	Sealed, hardened steel bevel, limited slip

Gear Pitch:	Module 1.0
Chassis Structure/Material:	3.2 mm aluminum plate
Brake Type:	Electronic
Drive System:	Shaft-driven 4WD
Steering:	Double-shear bellcrank w/metal servo arm
Wheels & Tires:	3.8″ wheels, pre-glued belted Sledgehammer® Tires & foam inserts; 6.7x3.8
Radio System:	2-Channel, TQi™ 2.4 GHz Transmitter with TSM® receiver
Servo:	2275 Waterproof, metal-gear (347 oz-in torque)
Top Speed:	70+ MPH with two 3s LiPo batteries and optional gearing (sold separately)
Skill Level:	4
Battery Tray:	Narrow configuration (L/W/H): 181 mm x 50 mm x 29/37/45 mm* Wide configuration (L/W/H): 160 mm x 57 mm x 29/37/45 mm*
Required Batteries:	4 “AA” (transmitter), Vehicle (see battery finder)

*Using included optional foam spacer
