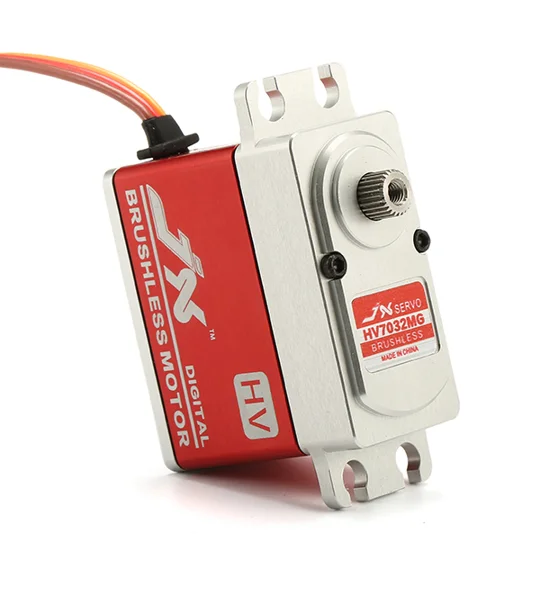

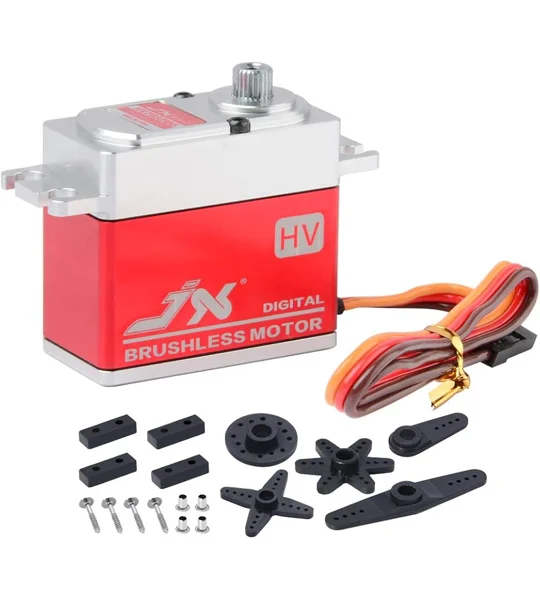

JX Servo HV7032MG

BLS-HV7032MG


JX Servo HV7032MG - 32kg 0.07s 8.4v High Voltage Speed Metal Gears Standard Digital Servo For RC 1:8 1:10 Car Crawler Fix-Wing Robot Arm


JX Servo HV7032MG SPECIFICATIONS
Brand Name: JX
Remote Control Peripherals/Devices: Servos
Tool Supplies: Grinded
Size: JX HV7032MG
Technical parameters: KV1100
Four-wheel Drive Attributes: Assemblage
Wheelbase: Bottom Plate
Recommend Age: 12+y
RC Parts & Accs: Servos
Certification: CE
Certification: FCC
Certification: RoHS
Use: Vehicles & Remote Control Toys
For Vehicle Type: Cars
Origin: Mainland China
Material: Metal
Upgrade Parts/Accessories: Gear
Model Number: Servo For RC Car
Quantity: 1 pcs
Brand:JX
Model:BLS-HV7032MG



Description:

32kg brushless motor HV sevo
Pulse width:1000-2000μs=90°
Pulse width:500-2500μs=180°
Dead band: 2μs 1520μs / 330hz
Motor: Brushless Motor
Operating Speed (6.0V): 0.09sec/60°
Operating Speed (8.4V): 0.07sec/60°
Stall Torque (6.0V): 26.3 kg.cm (364.96oz/in)
Stall Torque (8.4V): 32.51kg-cm 451.18 oz/in)
Dimensions: 40.5X20.5X36mm
Weight: 70.1g (2.47oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
