JST Connector (Male)

Description:

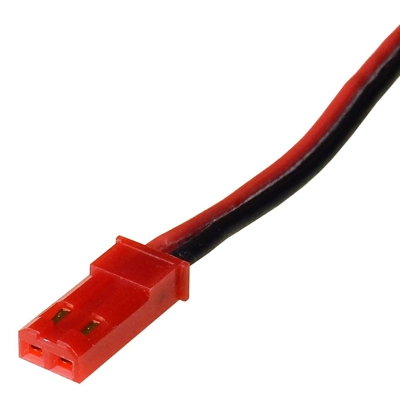

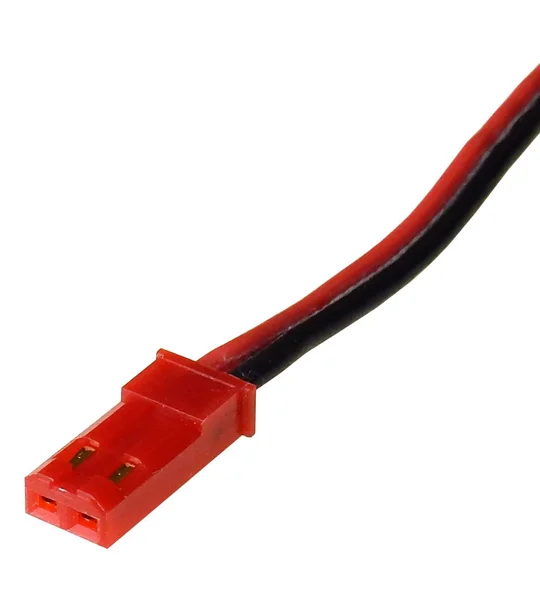

2-Pin JST Male connector.
Wires are 20 gauge, 10cm (4in) long. 12cm including connector housing.
High quality, high strand count silicon wire used gives higher amp throughput than standard wire of the same diameter. Connectors are plated for greater amp handling.
Good for a power disconnect in a low current system, or as a general connector in smaller bots.


Specifications:

Wires are 20 gauge, 10cm (4in) long. 12cm including connector housing.
Current: Rated 8A continuous (Combat robots routinely run >60A through these!)
Connector Housing Dimensions: 20 x 6 x 3mm (0.78 x 0.24 x 0.12in)



Tip: Female connector conventionally used for robot-side (non-live side) of connection. Male connector is used for battery or power source.
