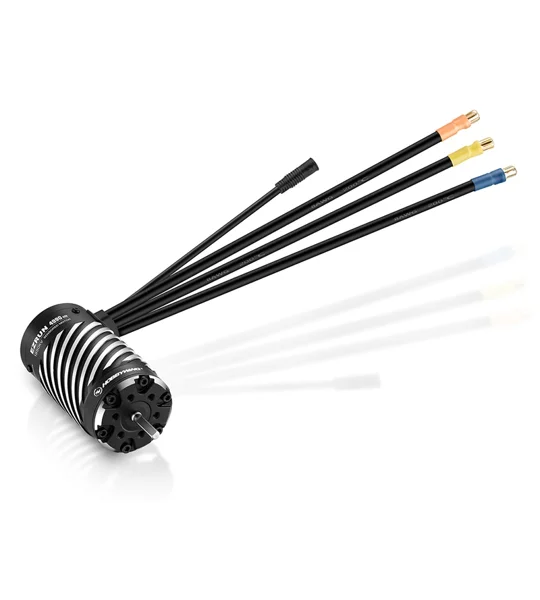

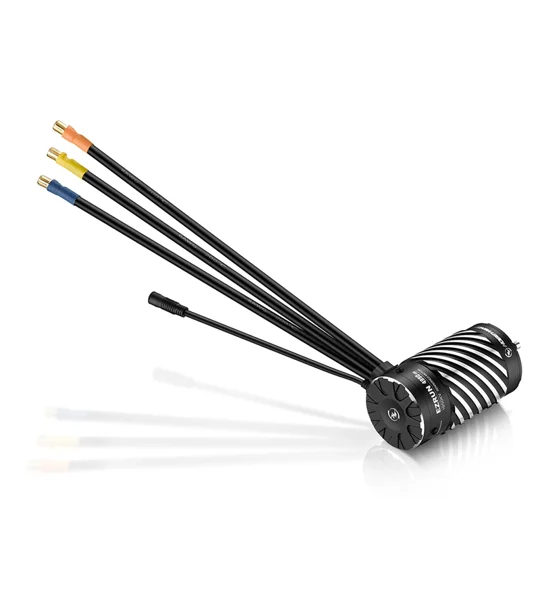

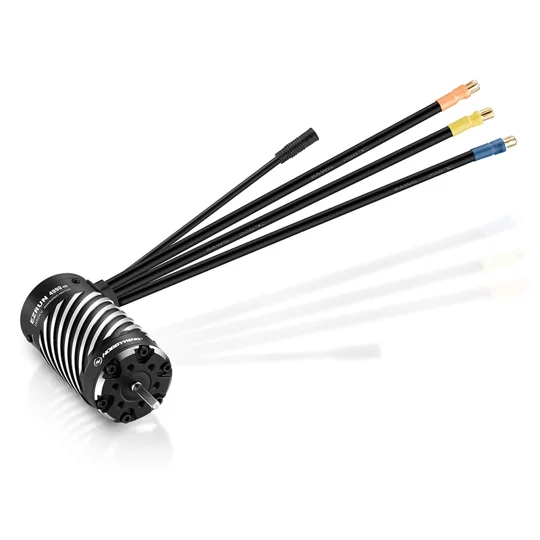

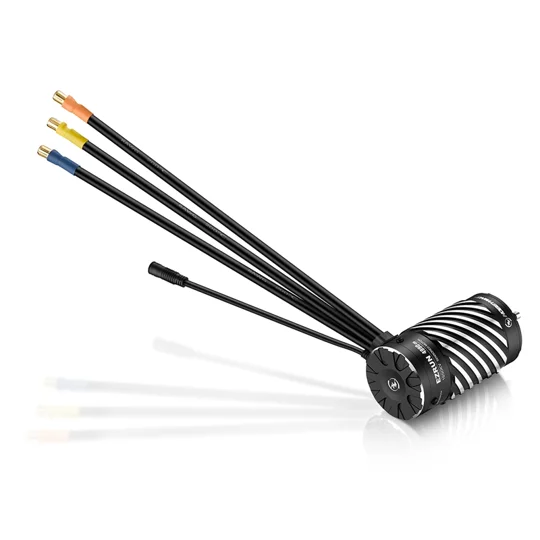

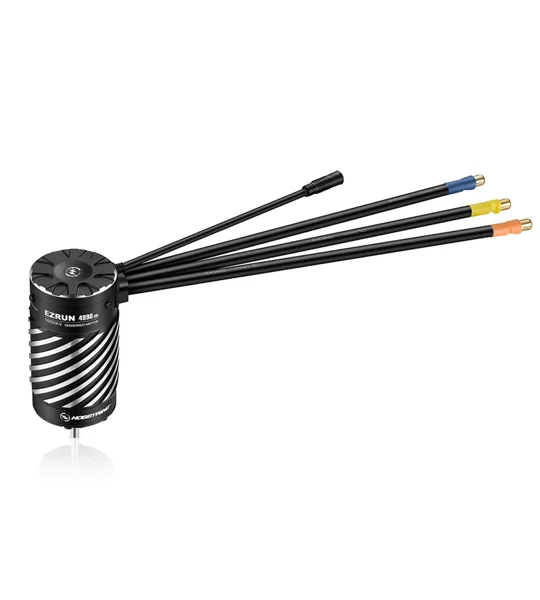

HobbywingEZRUN - 4990SD - 1650KV - Black - G2 Motor

HobbywingEZRUN - 4990SD - 1650KV - Black - G2 Motor
Part number: HW30402450


Elegant Appearance

The motor casing adopts an innovatively spiral groove heat dissipation structure. It not only has good heat dissipation, but visually appealing.

8S Sensored Motor

Wider Adaptability
Motor comes with 6.5mm plugs pre installed onto the motor power wires. Additional 8MM size motor plugs are included for usage with ESC's that have larger sized 8mm motor plugs like the Max5 G2.

New Sensor Line Interface
All Weather Operation Capability

All weather sensor plug system
The EzRun 4990/5690 is equiped with the HOBBYWING all weather sensor harness that makes all conditions, water proof, sensored combos a reality. This proven sensor harness keeps the elements out so your system can maintain fully sensored operation even in the worst conditions.
Note:
The IP67 protection level mentioned above is splash-proof, water-proof, and dust-proof under normal use, but it is not permanently effective, and the protection performance may decline due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.

Module design for easy maintenance
The motor adopts a modular structure design, which is convenient for daily cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.

Specification

Scale - 1/7th-1/8th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Pole Count - 4
KV Rating - 1650KV
LiPo - 3-8s
No-load Current(A) - 7.0A
O.D. (mm) - 49
Length (mm) - 90
Shaft Diameter (mm) - 5
Weight (g) - 701g
Front Bearing - D19*D6*T6
Rear Bearing - D19*D6*T6
Timing - Fixed
Applications -

1/7th On-road,Short course truck,Truck
1/8th Heavy-duty Monster truck
Examples: ARRMA Mojave/ Kraton 6S/Outcast 6S，
Traxxas XRT/X-MAXX
Traxxas Sledge with M2C upgrade kit (Ask for info)
